Controls
ECOCONTROL® range of controls
The gateway to Industry 4.0, we supply individually tailored hardware and software solution for operation and monitoring of compressed air installations
Online System Monitoring
- Modular hardware and software solution for the operation and monitoring of compressed air installations
- Detect critical situations online at any time, alarm acknowledgement and online configuration
- Data logging and visualization of current and past values,warnings by email
- Additional data boxes allow the connection of a variety of sensors
- Access with any internet-enabled end device
- Encrypted connection between server and user device
- Individual system configuration as PID representation
Ecomatic
- With fixed cycle times
- Standard scope of delivery in all
ECOTROC® ATK | ATO dryer units - Energy saving compressor synchronization control
- Cycle times variably adjustable
- Status display and potential-free alarm signal for service
- 24 V optionally possible
- Can also be used for adsorption dryers of other manufacturers

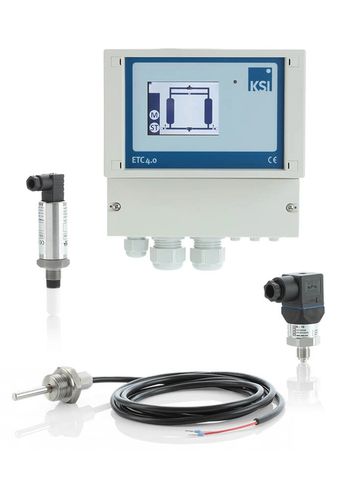

ETC4.0: Ecotroconomy Comfort
- Dew point control
- For all ECOCTROC® AT series
- Measurement and display up to -100°C
- Demand oriented regeneration control
- Integrated load change counter
- Saves operating parameters in combination with date and time
- Password protection on all levels
- Connection for optical and acoustic signals
- Automatic service indicator
- Potential-free alarm output
- External 4-20mA signal to transfer the displayed dew point value
ETP4.0: Ecotroconomy Premium
- Dew point control with inlet air monitoring
- All features of ETC4.0: Ecotroconomy Comfort, plus -
- Pressure measurement at the dryer inlet and indication on the control display
- Temperature measurement at the dryer inlet and indicator in the control display
- Option of safety shutdown in case of divergence from specified values
