Compressed air filters
ECOCLEAN® range of filters
Filtration technology of the ECOCLEAN® series reliably protects against contamination, e.g. pneumatic production equipment, machines, tools, measuring instruments and/or products.

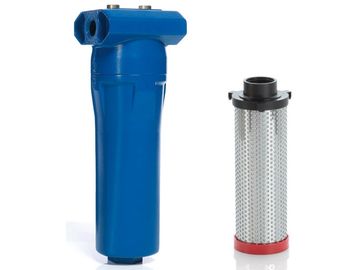

APF Standard
- Up to 55% less differential pressure
- Significantly reduced energy costs
- New high density deep bed pleated filter medium
- 250% larger filtration surface compared to a conventional pleated element
- Approx. 25% greater filtration surface compared to a conventional pleated element
- Reduced flow velocity within the filtration medium makes APF series the market leader in efficiency and lowest pressure drop.
APF Activated Carbon
- Thread filter up to 2,200 m³/h
- Removal of oil vapor and odors
- Less than 0.003 mg/m³ residual oil at 20°C
APF Dust
- Thread filter up to 2,200 m³/h
- Particle removal
- DMF 1 micron
- DF1 0,1 micron
- DSF 0,01 micron

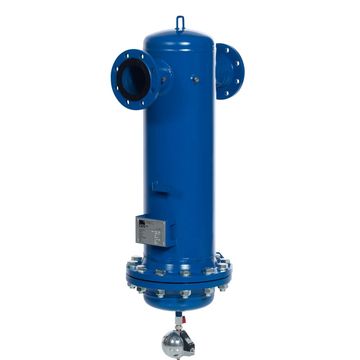

ECOCLEAN® Flanged
- Connections: DN80 - DN200
- Capacity: 1,400 m³/h - 12,600 m³/h
- In addition to PED and ASME, U-Stamp also available in other versions
- Also available as water separator
APF Water Separator
- Available in threaded and flanged connection
- Capacity levels up to 8,400 m³/h
- Cyclone separators that safely separate condensate using centrifugal action
- ¼" to 3" threaded connection
- DN65 to DN150 flanged connection
- Capacity of 35 m³/h – 2,200 m³/h with threaded connection
- Capacity of 1,400 m³/h – 8,400 m³/h with flanged connection
- Higher performance available on request
APF Cartridge
- Compressed air filter with cartridge
- CAK: activated carbon cartridge
for the removal of oil vapour and odors, residual oil content 0,003 mg/m³ (20°C) - MSK: molecular sieve cartridge
for the removal of moisture (dew point up to -40°C possible) - HC catalyst cartridgevfor the removal of carbon monoxide (CO)
- Also as alternative for housings from other manufacturers!
APF Vacuum
- For vacuum pump protection and exhaust
- Threaded filters' capacity up to 200 m³/h (at atmospheric pressure)
- Particle filtration 1 micron, 0,01 micron, activated carbon
- Available as flanged version with capacity 35 m³/h – 1,500 m³/h
APF Medical Vacuum
- Threaded filters up to 200 m³/h (at atmospheric pressure)
- Removal of bacteria with a penetration capacity of up to 0.0001% according to BS 3928
- Delivery with drain flask
- Also available as flanged filter
APF Medical Sterile
- Sterile filter for contamination-free compressed air
- Threaded filters up to 1,300 m³/h
- Connection: ¼" to 2"
- Capacity: 35 m³/h – 1,300 m³/h
- Sterilize in autoclave
- Particle filtration 0.01 micron
High Pressure Aluminum
- Up to 50 bar
- VF25 25 micron
- FF5 5 micron
- MFO 1 micron
- MF1 0.1 micron
- SMA 0.01 micron
- Activated carbon
- Water seperator
High Pressure Stainless Steel
- 250, 350, 450 & 500 bar
- VF25 25 micron
- FF5 5 micron
- MFO 1 micron
- MF1 0,1 micron
- SMA 0,01 micron
- Activated carbon
- Water seperator
Stainless Steel Sterile
- Sterile filter for sterile compressed air
- Threaded filter connection: ¼“ to 3″
- Capacity up to 3,600 m³/h
APF Elements
- Use of special component adhesive
- Stainless steel support cases fix and support high performance media
- End caps made of corrosion-preventing plasticizer-free plastics
- Using of depth filtration capacity for maximum filter surface area
- Silicon-free high-performance filter fleece loadable up to 120°C
APF Combination PFU3
- For breathing air systems in critical environments
- 100% technical oil and particle free air
- For water and solvent based varnish systems
- For respiratory hoods without activated carbon filter
APF Combination PFU2
- For painting operations
- 100% technical oil and particle free air
- Solvent based varnish systems
- For respiratory hoods with activated carbon filter on the belt
APF Mobile Breathing Air System
- Mobile preparation of compressed air and technical breathing air
- Triple stage filtration: MFO, SMA, CA
- Technically silicone-free! None of the components used are silicone-containing or release silicone-containing substances.
- Pressure reducer at the outlet ensures more effective separation in the filter stages
- Condensate drainage also possible at the ultra-fine filter stage
- Practical, robust and portable case solution
